Et-20 High-speed PVC hand-cut packaging machine for woodworking

The portable edge banding machine can be directly applied to the edge banding operation of plate linear and arc-shaped irregular borders. The portable woodworking edge banding machine can freely change the workplace and arrive at the decoration site for on-site construction, which is suitable for the decoration industry. Because

Featured Products

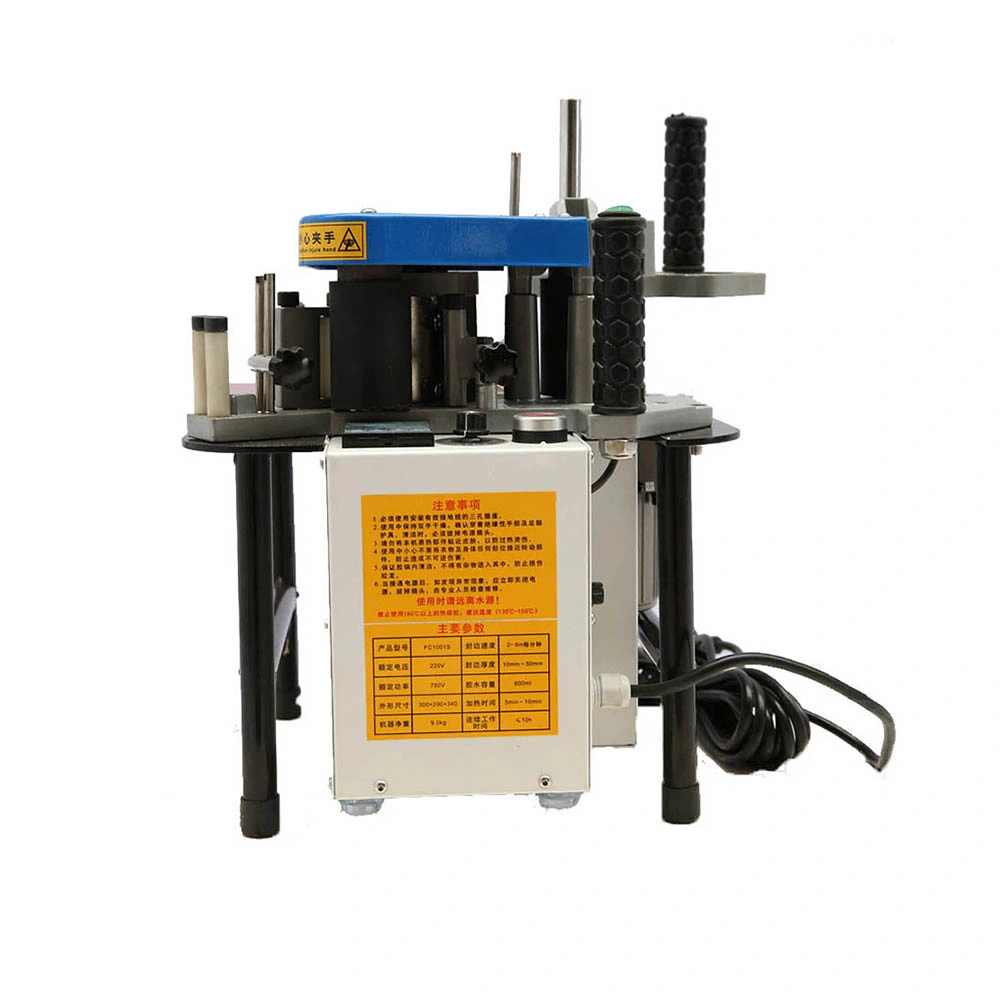

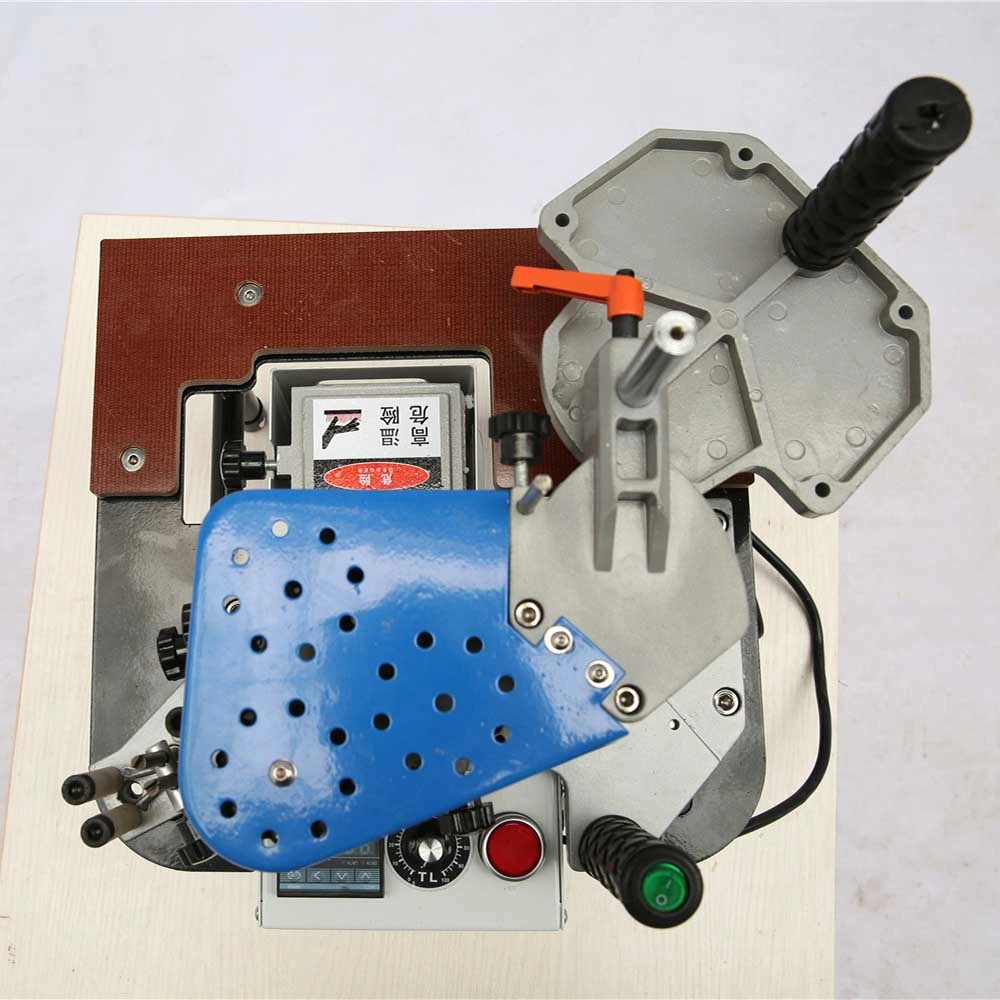

Et-20 High Speed PVC Hand Held Edge Bander for Wood Working
The portable edge banding machine can be directly applied to the edge banding operation of plate linear and arc-shaped irregular borders. The portable woodworking edge banding machine can freely change the workplace and arrive at the decoration site for on-site construction, which is suitable for the decoration industry. Because of its high flexibility, it is more practical to seal the edges of large wooden boards, does not require multiple operations, and is convenient and quick to operate.The portable edge banding machine is also suitable for edge banding of various materials: such as melamine (impregnated) paper, veneer, plastic (PVC or ABS), etc.
ModelET-20
Glue sideDouble
Tape thickness0.3-3.0 mm
Feeding speed2-6 m/min
Tape width10-60 mm
Feed motor25 w
Glue pot capacity570 ml
Heat temperature120-180°
Voltage220V 50Hz(Optional)
Weight9kg
Dimension500×500×400mm
Et-20 High Speed PVC Hand Held Edge Bander for Wood Working
                                                                      Et-20 High Speed PVC Hand Held Edge Bander for Wood Working
ModelET-60EET-360AET-360BET-360CET-360YCET-360DET-360F
Motor power4KW7.4KW9.4KW8.5KW11KW19KW15KW
Panel width≥60mm≥60mm≥60mm≥60mm≥60mm≥60mm≥60mm
Panel thickness10~60mm10~60mm10~60mm10~60mm10~60mm10~60mm10~60mm
Edge band thickness0.4~3.0mm0.4~3.0mm0.4~3.0mm0.4~3.0mm0.4~3.0mm0.4~3.0mm0.4~3.0mm
Edge band width12~65mm12~65mm12~65mm12~65mm12~65mm12~65mm12~65mm
Feed speed0~13m/min0~13m/min0~13m/min0~13m/min0~13m/min0~13m/min0~13m/min
Working pressure0.7Mpa0.7Mpa0.7Mpa0.7Mpa0.7Mpa0.7Mpa0.7Mpa
size(LxWxH)274*85370*93450*93418*93500*93590*93610*93
cm*148*160*160*160*160*160*160
ET-60Egluing,trimming,scrapping and buffing,also with manual end cutting
ET-360Agluing,end cutting,fine trimming,scrapping and buffing
ET-360Bgluing,end cutting,rough trimming,fine trimming,scrapping and buffing
ET-360Cgluing,end cutting,fine trimming,scrapping,vertical grooving,horizontal grooving and buffing
ET-360YCpre-milling,gluing,end cutting,rough trimming,fine trimming,scrapping and buffing
ET-360Fpre-milling,gluing,end cutting,fine trimming,corner rounding,scrapping, and buffing
ET-360Dgluing,end cutting,rough trimming,fine trimming,corner rounding,scrapping and buffing
Et-20 High Speed PVC Hand Held Edge Bander for Wood Working

Et-20 High Speed PVC Hand Held Edge Bander for Wood Working
Shandong Eterne Machinery Co.,Ltd. is a manufacturer based on woodworking machinery and equipment with high-tech products as direction.Our main products are edge banding machine, woodworking engraving machine, metal engraving machine, drill row and so on.

The head company"Wanfa Machinery" has more than 30 years of mechanical production experience, it covers 16,000 square meters, has a complete testing and experimental equipment, the application of leading software design and development products, has an excellent research and development environment. The research and development capabilities of new products have always been in the leading position.

The products have always maintained the market position of high technical grade, good quality performance and reasonable cost performance. ET machienry had been exported to many countries of the world such as America, Russia, Indonesia, Uzbekistan, Algeria, Mongolia etc more than 20 countries.


Eterne people make full use of technology and brand advantages, established a developed sales network throughout China, at the same time we established a good after-sales service network, can provide customers with quality technical advice and installation and maintenance services.

1.Advantage:

1. Adopt imported motor and high quality electrical component.
2. Product serialization and diversification is easy for the customer to choose.
3. High precision and work efficiency.
4. Automatic and precise gluing procedure as well as integrated double finish.
5. High strength frame structure, durable
6. Glue evenly, conveying stability
7. The machine is equipped with hand lubricator to reduce wear
2.Package:

We will take care of your machinery packages well like picture show.
Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
3.Guarantee:

The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
4.Technical support:

Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
5. After sales services:

Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine.
If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.


Shandong Eterne Machinery Co. Ltd. is a professional manufacturer. "ET Series" products include :
  1. Manual edge banding machine
  2. Semi-auto edge banding machine
  3. Automatic edge banding machine
  4. Multi- boring machine
  5. Sliding panel saw
  6. CNC Router
We devote ourselves to produce and provide high quality products and their spare parts.Et-20 High Speed PVC Hand Held Edge Bander for Wood Working

Q1: Are you a manufacturer or trading company?
      A: We are a manufacturer since 2003. We are dedicated to woodworking machinery manufacturing.

Q2: Where is the nearest airport and port from your factory?
      A: The nearest airport and port is Qingdao/Jinan international airport.

Q3: How can I get an accurate price?
 Kindly send us the picture of furniture you want to produceand and the working size.
 Or detailed machine functions you need, electricity voltage, Hz.

Q4: How is your after sales service?
Our sales are online for 24-hours. We can also supply overseas install service. Also we have more than 10 countries warehouse and department.

Q5: How long is the delivery time?
 Generally 7 ~ 15 days.

Q6: Can I get a machine according to my own requirements?
Sure.We accept OEM and ODM

Q7: If my machine is broken. Can you repair it for me?
 Yes. Our machine is with top quality, if any problem, We have free traning and conduction online. If there is big trouble within warranty time, we will send you new parts and repair.

Q8: How is the quality of your machine?
Our machine adopts heavy lathe bed, and each part is processed by CNC machining center, which greatly improves the accuracy of machine operation.

Q9: What's your MOQ and delivery?
 1 set by LCL. 3~9 sets by container
