Experienced four-sided forming machine MB418d woodworking four-sided planer forming machine woodworking machine for woodworking

High Efficiency Four Sides Moulder Wood Planer MachineFour-side Moulder parameter ModelsRMB413DRMB418DRMB518DXWorking width(mm)15-13015-18015-180Working thickness(mm)8-1008-1308-130Min working length(Intermittent /continuous)(mm)580/300580/300580/300Main shaft diameter(mm)Φ40Φ40Φ40Feeding speed(m/min)5-405-

Featured Products

High Efficiency Four Sides Moulder Wood Planer Machine

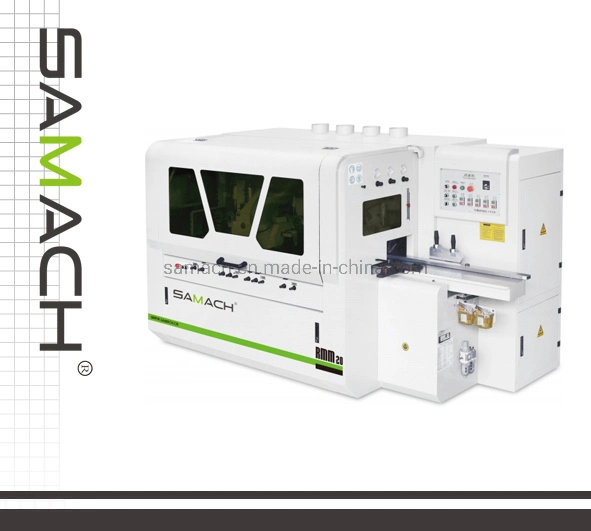

Experienced Four-Side Moulder MB418d Woodworking Four Side Planer Moulder Woodworking Machine for Woodworking

Experienced Four-Side Moulder MB418d Woodworking Four Side Planer Moulder Woodworking Machine for Woodworking

Experienced Four-Side Moulder MB418d Woodworking Four Side Planer Moulder Woodworking Machine for Woodworking
Four-side Moulder parameter

ModelsRMB413DRMB418DRMB518DX
Working width(mm)15-13015-18015-180
Working thickness(mm)8-1008-1308-130
Min working length(Intermittent /continuous)(mm)580/300580/300580/300
Main shaft diameter(mm)Φ40Φ40Φ40
Feeding speed(m/min)5-405-405-40
Main spindle speed(m/min)700070007000
Left and right vertical shaft(mm)Φ110-Φ170Φ110-Φ170Φ110-Φ170
1st upper shaft(mm)Φ125-Φ160Φ125-Φ160Φ125-Φ160
2nd lower shaft(mm)--Φ125-Φ180
Totaol motor power18.75KW24.25KW30.75KW
1st lower shaft3KW4KW4KW
Left and right vertical shaft4KW5.5KW5.5KW
1st upper shaft4KW5.5KW5.5KW
2nd lower shaft--5.5KW/7.5KW
Feeding motor3KW3KW4KW
Beam motor0.75KW1.5KW0.75KW
Pneumatic source pressure(Mpa)0.60.60.6
Dust outlet diameter(mm)4*-Φ1504*-Φ1505*-Φ150
Ovreall size(mm)3150*1380*16603150*1550*18003150*1550*1800
Weight(kg)210027002900

ModelsRMB518DSRMB618DRMB621DRMB623D
Working width(mm)15-18015-18015-21015-230
Working thickness(mm)8-1308-1308-1308-160
Min working length(Intermittent /continuous)(mm)580/300580/300580/300580/300
Main shaft diameter(mm)Φ40Φ40Φ40Φ40
Feeding speed(m/min)5-408-408-408-40
Main spindle speed(m/min)7000700070007000
Left and right vertical shaft(mm)Φ110-Φ170Φ110-Φ170Φ110-Φ170Φ110-Φ170
1st upper shaft(mm)Φ125-Φ160Φ125-Φ160Φ125-Φ160Φ125-Φ160
2nd upper shaft(mm)Φ125-Φ160Φ125-Φ160Φ125-Φ160Φ125-Φ160
2nd lower shaft(mm)-Φ125-Φ180Φ125-Φ180Φ125-Φ180
Total motor power30.75KW/32.75KW40.25KW43.75KW54.75
1st lower shaft4KW4KW5.5KW7.5KW
Left and right vertical shaft5.5KW5.5KW5.5KW7.5KW
1st upper shaft5.5KW7.5KW7.5KW11KW
2nd upper shaft5.5KW/7.5KW5.5KW7.5KW7.5KW
2nd lower shaft-7.5KW7.5KW7.5KW
Feeding motor4KW4KW4KW5.5KW
Beam motor0.75KW0.75KW0.75KW0.75KW
Pneumatic source pressure(Mpa)0.60.60.60.6
Dust outlet diameter(mm)5pc-Φ1506pc-Φ1506pc-Φ1506pc-Φ150
Overall size(mm)3680*1550*18003680*1550*18003680*1660*18603680*1660*1860
Weight(kg)3200340037004000
Samach'S Service and dominants:

1: Professional team of techniques study and research, guarantee the Machine latest
and improving efficiency.

2.Knowing China and world markets welloffer professional soluttions.

3.Fast market reaction guarantee our partners always in front edge.

4.Supeiror Guarantees
,quality of our machine and sell-after services.

5.OEM/ODM are available.

6.Principle: One cooperation, forever partners.

Contact us and Enjoy our Happy Coopperation Together.  Thank you for your time ^_^ !

Machine introduction:

1. The flat tooth type steel roller with special treatment will durable in use.

Experienced Four-Side Moulder MB418d Woodworking Four Side Planer Moulder Woodworking Machine for Woodworking

2. There are sections for adjusting pressure according to the machine which could ensure feeding smoothly.

Experienced Four-Side Moulder MB418d Woodworking Four Side Planer Moulder Woodworking Machine for Woodworking


3. Machine with cardan joint drive infeed which is high efficiency and make the lifespan longer.

Experienced Four-Side Moulder MB418d Woodworking Four Side Planer Moulder Woodworking Machine for Woodworking

4. The imported oil pump could better protect and lubricate the machine tool.

5. The side infeed device which could ensure infeed
smoothly.


Experienced Four-Side Moulder MB418d Woodworking Four Side Planer Moulder Woodworking Machine for Woodworking

6. The working table is hard chromium plated which will durable in use.

7. The rear work table is equipped with the active feeding wheel ensuring the smooth feeding.


Experienced Four-Side Moulder MB418d Woodworking Four Side Planer Moulder Woodworking Machine for Woodworking

8. High precision spindle motor which is great power to ensure the saw cutting will not get stuck.

9. The speed of feeding frequency is used to adjust to achieve convenient and fast effect.

10. The front work table is equipped with the active feeding wheel
material feeding cutoff force.


Experienced Four-Side Moulder MB418d Woodworking Four Side Planer Moulder Woodworking Machine for Woodworking

11. Assembling with the imported electrical brand Schneider to provide the machine with new energy.

12. Heavy duty gear box and cardan shaft driven feeding system.

13. The imported FRL is to ensure the air pressure is stable when pressing the material. The imported FRL is to ensure the air pressure is stable when pressing the material.


14. Optional: The groove working table is optional for irregular workpiece.

15. The short material feeding device is optional for the purpose of coovenienting high speed feeding for short workpiece.

16.
The pressing wheel mechanism for short boards, ensuring the smooth conveying of the short materials (Optional)


LIGNA GERMAN, World Top Level Exhibition of Woodworking Machinery.
QingDao Samac International Trading Co., Ltd. Specializes in the export of woodworking, glass processing, metal processing and Stone Processing machinery. Our woodworking machinery series is mainly used to process real wood, wooden plates, plywood and related types of wood.
Since the foundation of our company, we have always introduced first-class Chinese machinery to the entire world. We cooperate with many local famous factories on R&D to keep in pace with this modern world. Our company aims to help our customers select the best quality and most suitable products for their needs. Simultaneously, we also undertake OEM/ODM projects which can satisfy customers' special requirements.
Quality: We are scrupulous about every detail, professional QC and strict checking porcedure ensure our work and guarantee eac machine which is in it's best presentation. All our goods pass through our rigid quality control before shipment.
With high-quality products, powerful strength, a professional team and excellent after-sales service, we have gained a good reputation among our customers. It is our sincere desire to develop more customers' business through trustworthy cooperation.
Exhibition

Experienced Four-Side Moulder MB418d Woodworking Four Side Planer Moulder Woodworking Machine for Woodworking

Packing and transportation

Experienced Four-Side Moulder MB418d Woodworking Four Side Planer Moulder Woodworking Machine for Woodworking

Factory

Experienced Four-Side Moulder MB418d Woodworking Four Side Planer Moulder Woodworking Machine for Woodworking
FAQ:

1. Can you offer special discounts to the wholesaler or we make big quantity?
Yes, we will give you best support according to your quantity, and will arrange some promotion products every month.

2. What is your delivery time?
Normally, we can finish one order at about 25-30days, but the exact time depends on different styles and different quantities you order.

3. Can you arrange the shipment by door to door?
We can offer door to door service both by sea and by air, which can save your time and money. Also, we have cooperated forwarder in some countries and can arrange the customs clearance for you.

4. Do I have to assemble all items by myself or by my customer himself?
Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts), and others need to be assembled, But it is so easy to assemble with the user manual or video teaching.

5. What's your warranty?
We normally will provide one years warranties. If the product is caused by factory mistakes, We will give you free replacement for the spare parts. If it was damaged during the shipping or other reasons, we will provide the best solutions for you.

6. What payment do you accept?
Normally we can provide TT, LC, PAYPAL, ESCROW, WESTERN UNION ect. Any other ideas, please contact us for better support.
