Planer thicknesser Four-Side Moulder/Woodworking machiery planer Moulder
QMB523A
Qingcheng Machinery Co.,LTD established in 1970 which are speclializing in producing all kinds of woodworking machines, like Four Side Moulder, Double Side Planer, Automatic Muti-blade Rip Saw, Automatic Single-side Rip Saw and Double-end Tenoning Machine, Wood Planer etc.
It's been 50 years since we have devoted our-self to the development and manufacturing of woodworking machinery. As a top manufacturer in wood machinery, we insist on investment on research and develop and equipment. We have purchased vertical machining centers, muti-function CNC lathes produced by Japan Mazak, horizontal machining centers of Japan MAKINO, Japanese gantry machining centers of OKUMA, and laser cutting machines from Mitsubishi.
Those advanced equipment insure you precision, performance and durability, with mass production in big quantity. So that we can insure our customers fast delivery time, high quality and perfect performance.
FAQ
Below FAQ for your reference, if you have any further questions, we are always here for you.
1, Manufacturer or Trading company?
Yes, we are professional machine producer since 1970.During the last 50 years, we devoted our-self to the development and manufacturing of woodworking machinery with passion and innovation. You will be always welcomed to visit our factory.
2, What's your payment term?
30% deposit and 70% balance should be paid before delivery.
3, How about your after-sale service?
Our engineers are available to service overseas to provide professional technical support.
4, Warranty of the thicknesser planer?
Its warranty is 12 months.
5, What's your leading time of the miller machine?
Within 2 days for regular stocked machine after receiving deposit.
2 months for OEM machines.
7, What's your delivery term of four-side planer?
---FOB shanghai/Ningbo

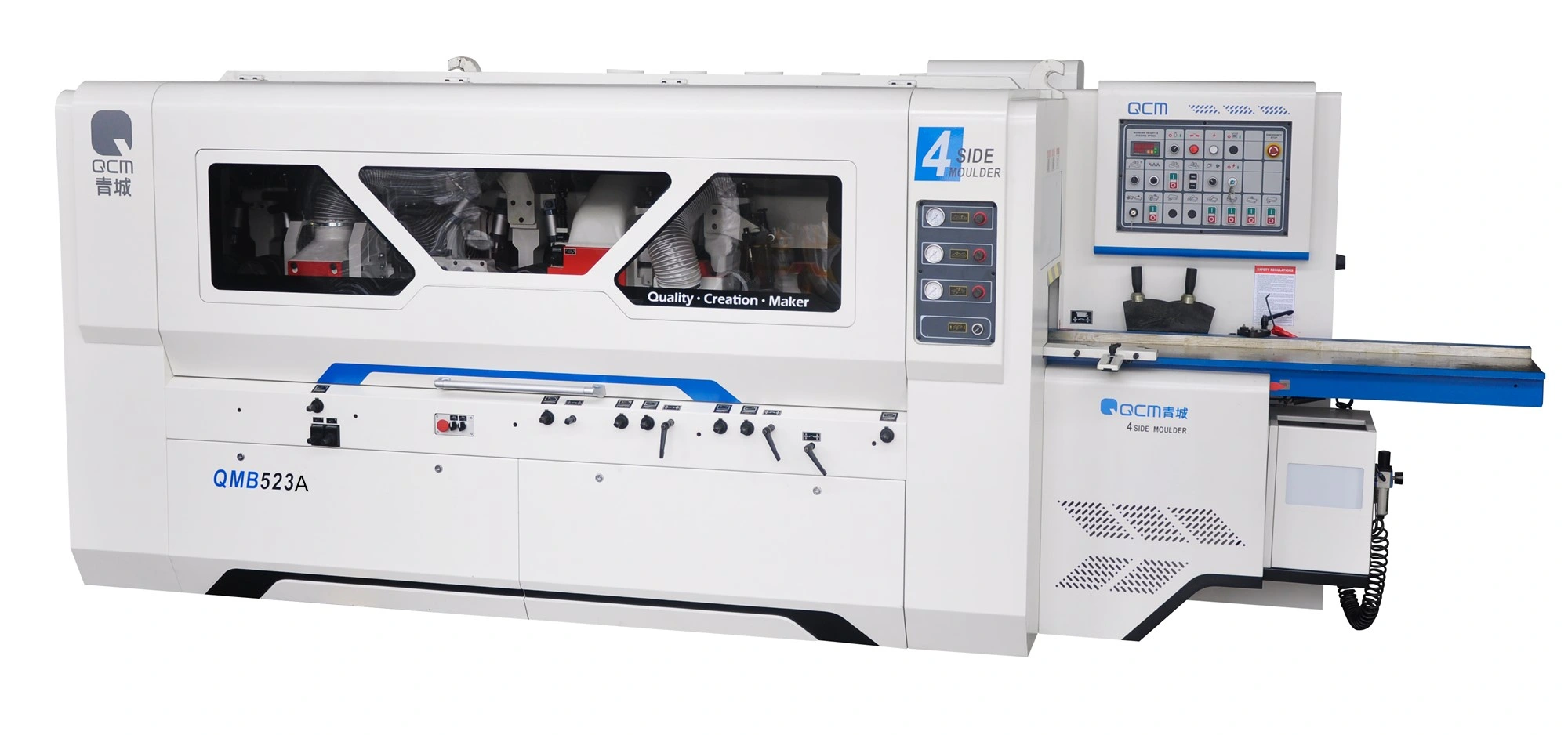

QMB523A
Specifications | Working width | 20-230 mm |
| Working thickness | 8-160 mm | |
| Min.working length(intermittent/continuous) | 840/280 mm | |
| Dia of spindle | Φ40 mm | |
| Feeding speed | 6-36 m/min | |
| Rotation speed of spindle | 6800 r/min | |
| The First spindle speed | / | |
| Other spindle speed | / | |
| Cutter dia of first bottom cutter | Φ125 r/min | |
| Left/Right vertical cutter | Φ108-Φ200 mm | |
| The first upper cutter | Φ108-Φ180 mm | |
| The Second upper cutter | / | |
| Back bottom cutter | Φ108-Φ230 mm | |
| The Second right vertical cutter | / | |
Motor Power | Total power | 38.25/51 kW/HP |
| The First bottom cutter | 5.5/7.5 kW/HP | |
| Left vertical cutter | 7.5/10 kW/HP | |
| Right vertical cutter | 5.5/7.5 kW/HP | |
| The first upper cutter | 7.5/10 kW/HP | |
| The second upper cutter | / | |
| The second bottom cutter | 7.5/10 kW/HP | |
| The second right vertical cutter | / | |
| Feeding motor | 4/4.5 kW/HP | |
| Beam lifting motor | 0.75/1 kW/HP | |
| Pressure & Diameter | Air supply pressure | 0.6 MPa |
| Vacuum port diameter | 5*Φ150 mm | |
| Dimensions & Weight | Overall dimensions | 4280*1900*1700 mm |
| Weight | 4600 kg |
