Shinho's new S-16 rugged fusion splicer for FTTX project trunk projects

Product DescriptionsWe\'re  a professional manufacturer of fusion splicers, OEM is available. We also offer related products, such as OTDR, power meter, light source, VFL, toolkit etc.S-16 Fusion Splicer is the new model to the market, which has faster splicing time and heating time. It is with core to core alignment t

Featured Products

Product Descriptions

We're  a professional manufacturer of fusion splicers, OEM is available. We also offer related products, such as OTDR, power meter, light source, VFL, toolkit etc.

S-16 Fusion Splicer is the new model to the market, which has faster splicing time and heating time. It is with core to core alignment technology, and has very stable performance and low fusion loss. Easy operation for fiber optical projects.

Features
 6s for splicing and 18s for heating
 Core to core alignment technology
 Anti-shock, Anti-dust and waterproof
 Automatic ARC value & position calibration
 USB port for software updating and data records exporting
 5800mAh Li-battery, more than 220 cycles splicing&heating
 Multi-function holder clamps, apply to bare fiber,pigtail,patch cords, drop cable etc.


Specifications

Applicable fiberSM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)
Diameter of cladding80 -150μm
Diameter of coating160 - 900μm
Typical splice lossSM:0.02dB, MM:0.01dB, DS:0.04dB, NZDS:0.04dB
Return loss>60db
Fiber cleaved length10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )
Splicing program40 groups
Operate modeManual, Automatic
Auto-heatingAvailable
Typical splicing time6 seconds
Tube heating time18 seconds for 60mm and 40mm shrinkable sleeves
Fiber view magnification250X(X or Y view), 125X(X and Y view)
Viewing method and display2 CMOS cameras, 4.3 inch color LCD monitor
Storage of splice result4000 results
Loss evaluationAvailable
Tension test1.8-2.2N
InterfaceGUI menu interface, easier operation
Battery capacity5800mAh Li-battery, typical 220 cycles(splice and tube heat)
Power supplyAdaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
Electrode lifeMore than 4000 ARC discharges, can be replaced conveniently
TerminalsUSB 2.0 port, for uploading splice results and upgrading software
Operating conditionAltitude: 0-5000m, Humidity: 0-95%, Temperature: -10ºC~+50ºC;Wind speed: max 15m/s
Dimension160mm(L)x136mm(W)x140mm(H)
Weight2.20kg including battery
PackagePacked in carton with protection foam, Size 43cm*37cm*27cm, G.W.6.5kg


Details

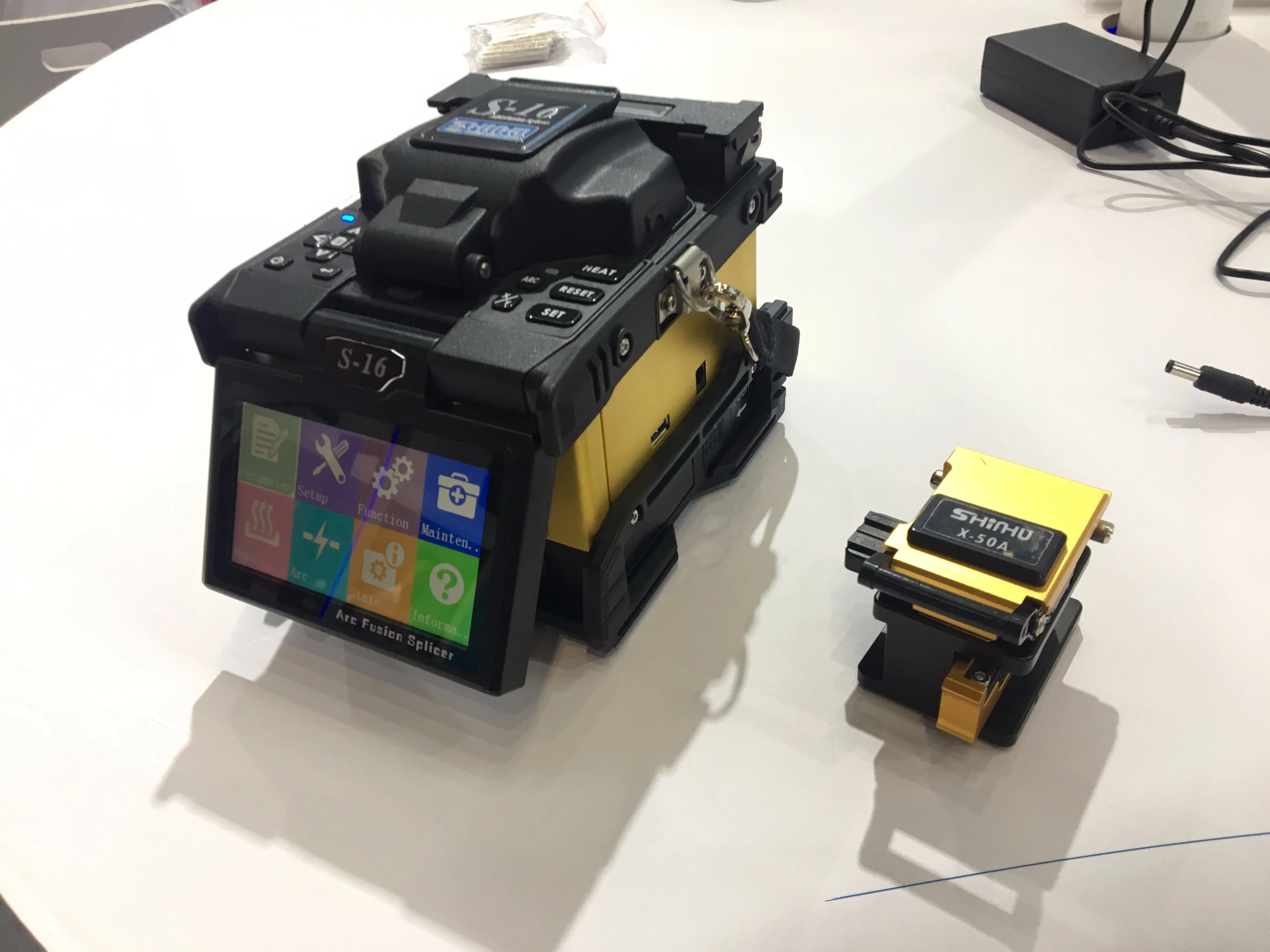

Shinho New Model S-16 Robust Fusion Splicer for FTTX Projects Trunk Line Projects

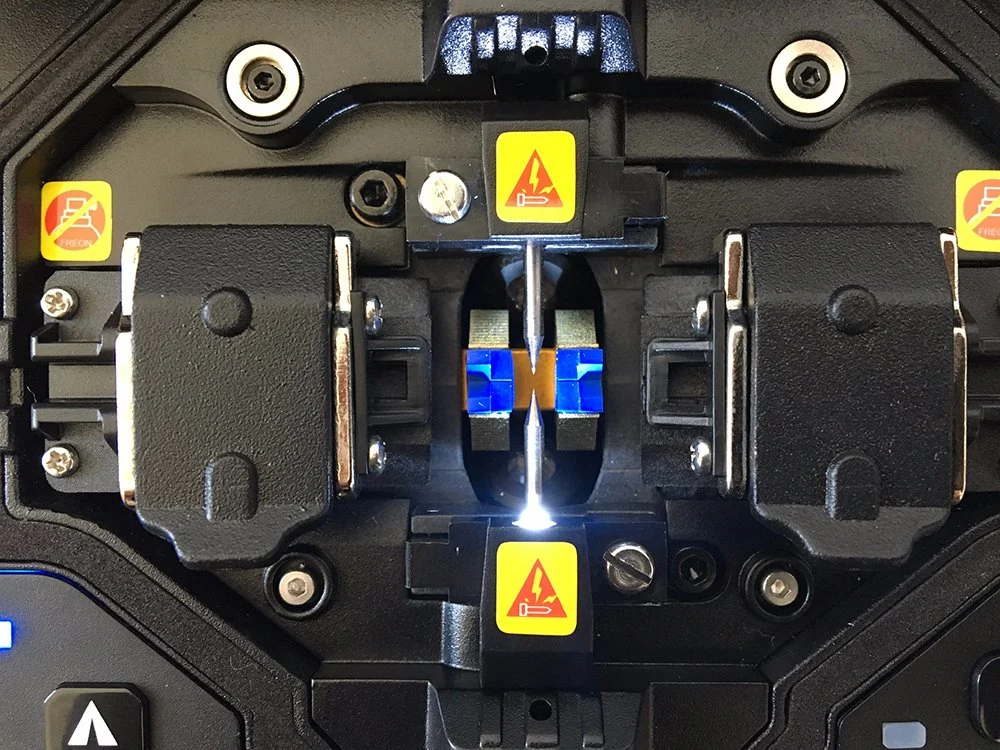

 Shinho New Model S-16 Robust Fusion Splicer for FTTX Projects Trunk Line Projects Shinho New Model S-16 Robust Fusion Splicer for FTTX Projects Trunk Line Projects

Shinho New Model S-16 Robust Fusion Splicer for FTTX Projects Trunk Line Projects

Standard accessories
Shinho New Model S-16 Robust Fusion Splicer for FTTX Projects Trunk Line Projects


Our Team
We have a professional, experienced, creative and conscientious team. Customers can get
Reliable quality
Upgraded technology
Cost-effective products
Flexible OEM service
Timely techinical support  (including repair, maintaining,  training etc.) from us.


Shinho New Model S-16 Robust Fusion Splicer for FTTX Projects Trunk Line Projects

Packing&Shipping

Delivery leading period
Within 3 working days for small orders after receiving payment;
Kindly consult us for bulk orders.

Shipment
Choosing DHL, FedEx, TNT, EMS, UPS and other Express, delivering to your hands directly for small orders;
By sea or by aircargo for bulk orders.

After-sales Services
We guarantee that every fusion splicer is tested carefully and works very well before shipment. We strive for 100% customer satisfaction on every sale we complete.
We are responsible for the whole lifespan of our products, and whenever you have questions during usage, feel free to contact us, we are glad to provide technical support timely.

We guarantee all our fusion splicers for 24 months from the date customers receive them. Other parts for six months.
During the warranty period, we can repair or replace the defective parts for free. After the warranty time, we can also repair the defective parts, but only charge for parts.

If you have any interest, please do not hesitate to contact us!
