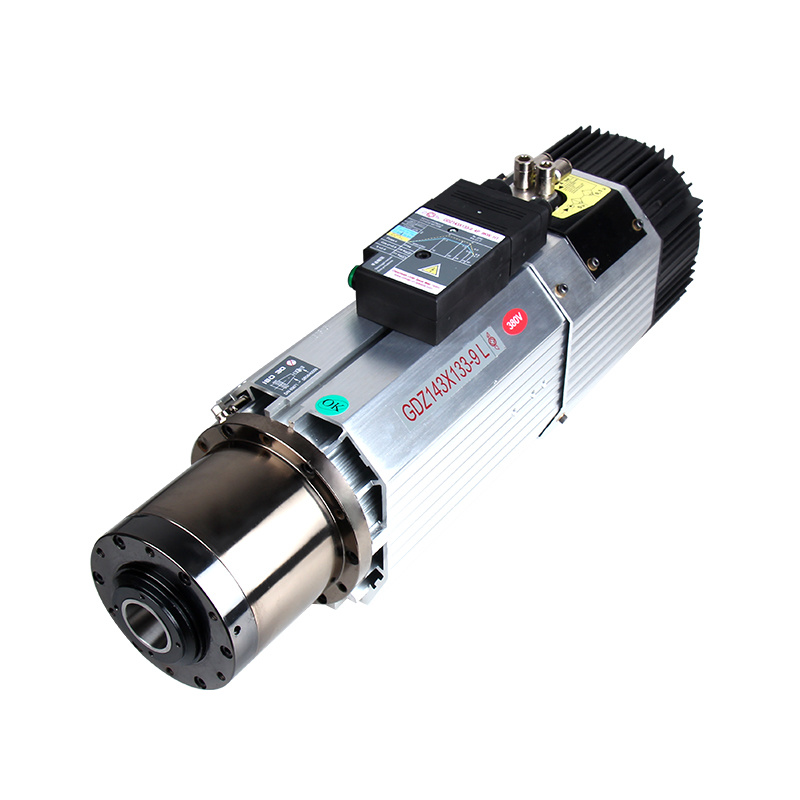

Spindle motor 9KW woodworking cutting machine machining center accessories air-cooled automatic tool Change
Product Description
| Item | Specifications |
Spindle type | GDZ143*133-9.0 |
Speed | 24000rpm |
Power | 9.0KW |
Voltage | 380V |
Current | 18A |
Frequency | 800HZ |
Lub | grease |
Cool | Air cooling |
Weight | 31KG |
Product Effects
Spindle motor features: ,
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle, air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.
Provide:4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.
1.Water cooling: 300w, 800w, 1.2kw, 1.5kw, 2.2kw, 3kw, 4kw, 3.2kw, 4.5kw, 5.5kw
2.Air cooling: 800w, 1.5kw, 2.2kw. 3.5kw, 4.5kw, 6kw, 7.5kw, 12kw
3.Cooled by self: 400w
4.ATC spindle: cooled by water: 1.5kw, 2.2kw, 5.5kw, 6kw, 7.5kw
Cooled by air: 8kw, 9kw
5.Sealing side spindle: 350w, 550w, 700w, 750w, 1.1kw, 1.8kw, 2.2kw
We also have spindle motor matching inverter(VFD), collet , gripper etc.
If you need other kinds of parts, please don't hesitate to contact us.

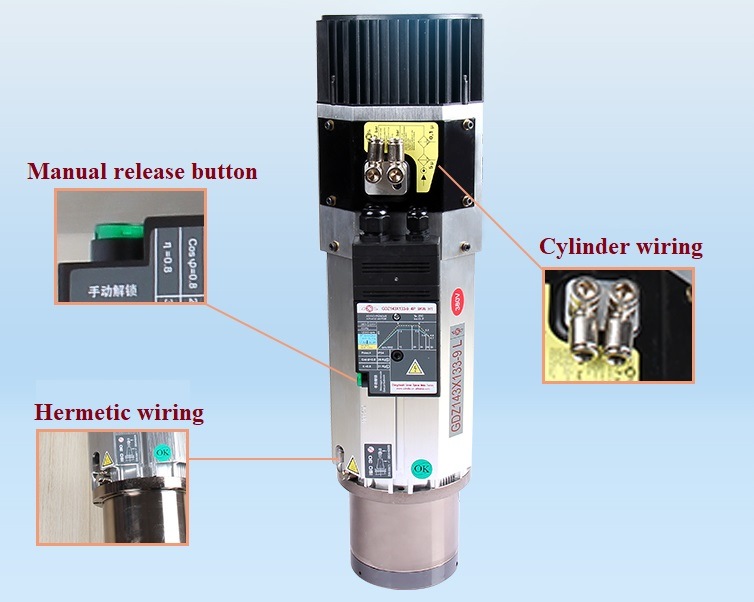

Detialed Images
Success Case
Company Profile
LUNYEE INDUSTRIES DEVELOPMENT CO., LIMITED was founded in 2007, is a leading manufacturer for factory automation(FA) products. We are dedicated in power transmission and motion control solutions. A satisfying one-stop service comes from our continuous innovation team and our rigorously-inspected sub-contractors.
Packing & Delivery
Packing Method
1.Outer packing: Standard export carton with required shipping marks
2.Inner packing: Waterproof packing with shock absorbing EPE and cardboard surrounded
3.As per the clients requirements
Shipment Method
We will ship the items after the payment.
We can ship to you by UPS/DHL/TNT/EMS/Fedex,by air and by sea.
For the Countries & Regions where EMS cannot deliver,pls choose other shipping ways;
Pls contact us directly and we will use your preferred ways
FAQ
Q1.How about the warranty of the products?
A:Bearings=half a year, other parts a year.If machine have any problem after receive it, message me.
Q2.Can you customize according to the drawing?
A: Yes, we can produce by your samples or technical drawings.
Q3. What kind of bearing you are using?
A:It will according to your order. We have different price range for you with different bearing.
Q4.What is your sample policy?
A: We can supply the sample if we have in stock, but the customers have to pay the sample cost and the courier cost.
Q5. How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
