Four sided Planing machine 4-side Planing Machine/Four-Side Moulder
Woodworking planer/Moulder Machinery for Wooden Furniture/Solid wood

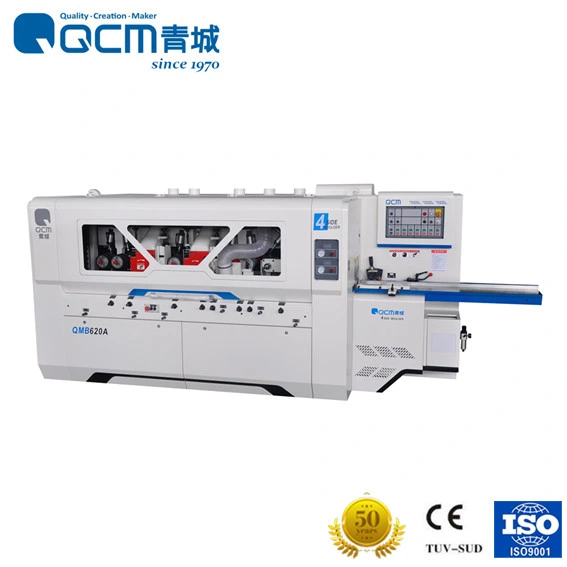

QMB620A Woodworking machinery Automatic wood kitchen cabinet processing four sides Thicknesser Planer
Qingcheng Machinery Co.,LTD established in 1970 which are speclializing in producing all kinds of woodworking machines, like Four Side Moulder, Double Side Planer, Automatic Muti-blade Rip Saw, Automatic Single-side Rip Saw and Double-end Tenoning Machine, Wood Planer etc.
t's been 50 years since we have devoted our-self to the development and manufacturing of woodworking machinery. During the last 50 years, we developed:
1. Our own casting foundry which can meet the demand of annual output of 15000 tons of large castings.
All the machines is cast in one piece which has advantage of high precision, high stablity.

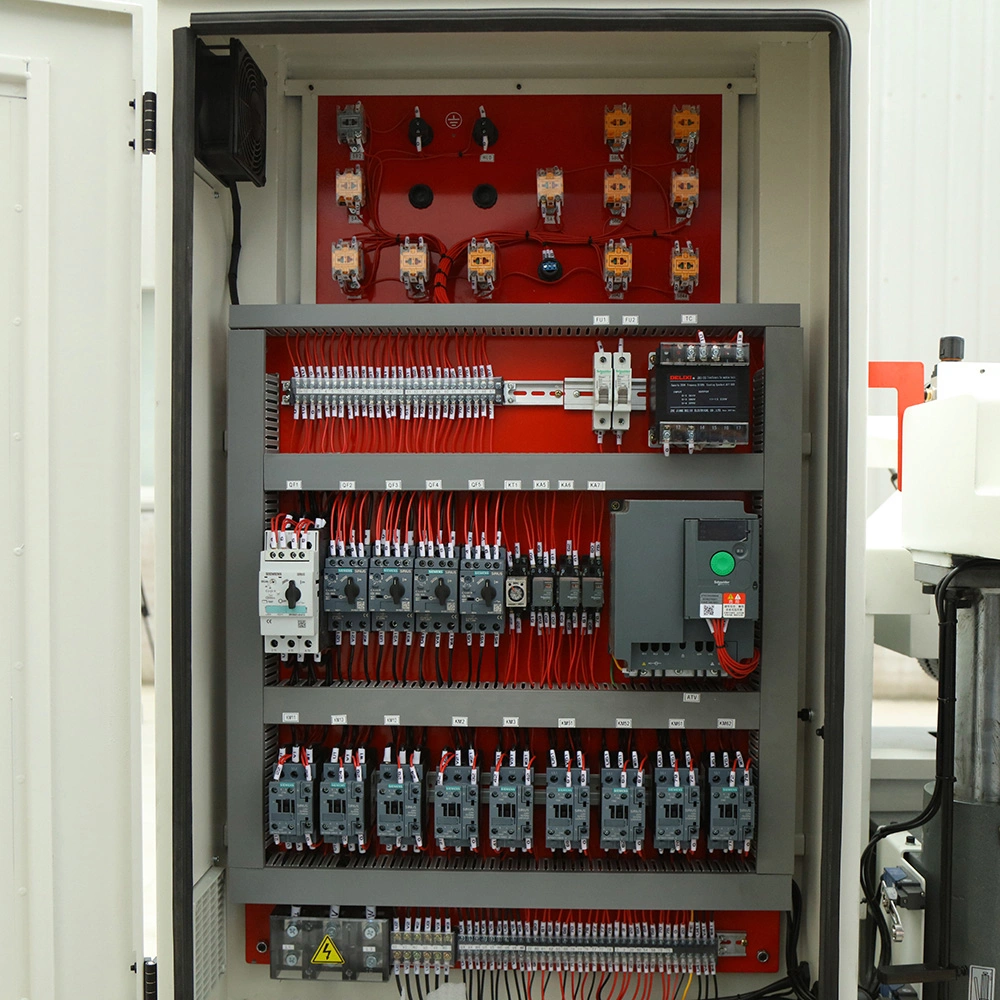

2.Siemens electronic components for all the machines, well-organized and good stability.
3.A complete and advanced processing mother-machines lines which costs 3 million dollars imported from Japan. High precision mother machines produce final machines with high precision, within tolerance +-0.1S.
FAQ
Below FAQ for your reference, if you have any further questions, we are always here for you.
1, Manufacturer or Trading company?
Yes, we are professional machine producer since 1970.During the last 50 years, we devoted our-self to the development and manufacturing of woodworking machinery with passion and innovation. You will be always welcomed to visit our factory.
2, What's your payment term?
30% deposit and 70% balance should be paid before delivery.
3, How about your after-sale service?
Our engineers are available to service overseas to provide professional technical support.
4, Warranty of the wood planing machine?
Its warranty is 12 months.
5, What's your leading time of the thicknesser planer?
Within 10 days for regular stocked machine after receiving deposit.
2 months for OEM machines.
7, What's your delivery term of the skirting moulding planer?
---FOB shanghai/Ningbo
Woodworking planer/Moulder Machinery for Wooden Furniture/Solid wood
QMB620A Woodworking machinery Automatic wood kitchen cabinet processing four sides Thicknesser Planer
| Specifications | Unit | QMB620A |
| Working width | mm | 20-200 |
| Working thickness | mm | 8-125 |
| Min.working length(intermittent/continuous) | mm | 590/250 |
| Dia of spindle | mm | Φ40 |
| Feeding speed | m/min | 8-33 |
| Rotation speed of spindle | r/min | 6800 |
| The First spindle speed | r/min | / |
| Other spindle speed | r/min | / |
| Cutter dia of first bottom cutter | r/min | Φ125 |
| Left/Right vertical cutter | mm | Φ108-Φ180 |
| The first upper cutter | mm | Φ108-Φ180 |
| The Second upper cutter | mm | Φ108-Φ180 |
| Back bottom cutter | mm | Φ108-Φ200 |
| The Second right vertical cutter | mm | / |
| Total power | kW/HP | 39.75/53 |
| The First bottom cutter | kW/HP | 5.5/7.5 |
| Left vertical cutter | kW/HP | 7.5/7.5 |
| Right vertical cutter | kW/HP | 5.5/7.5 |
| The first upper cutter | kW/HP | 7.5/10 |
| The second upper cutter | kW/HP | 5.5/7.5 |
| The second bottom cutter | kW/HP | 5.5/7.5 |
| The second right vertical cutter | kW/HP | / |
| Feeding motor | kW/HP | 4/5.5 |
| Beam lifting motor | kW/HP | 0.75/1 |
| Air supply pressure | MPa | 0.3-0.6 |
| Vacuum port diameter | mm | 6*Φ120 |
| Overall dimensions | mm | 4000*1780*1750 |
| Weight | kg | 4400 |
Qingcheng Machinery Co.,LTD established in 1970 which are speclializing in producing all kinds of woodworking machines, like Four Side Moulder, Double Side Planer, Automatic Muti-blade Rip Saw, Automatic Single-side Rip Saw and Double-end Tenoning Machine, Wood Planer etc.
t's been 50 years since we have devoted our-self to the development and manufacturing of woodworking machinery. During the last 50 years, we developed:
1. Our own casting foundry which can meet the demand of annual output of 15000 tons of large castings.
All the machines is cast in one piece which has advantage of high precision, high stablity.
2.Siemens electronic components for all the machines, well-organized and good stability.
3.A complete and advanced processing mother-machines lines which costs 3 million dollars imported from Japan. High precision mother machines produce final machines with high precision, within tolerance +-0.1S.
- Japan's OKUMA five-surface gantry machining-center
- Japan's LGMazak FMS flexible machining production line
- MAKINO horizontal machining center
- MORI SEIKI(nine-axis linkage) lathe-mill cutting center
- LGMazak vertical machining center
- Japan's Mitsubishi laser cutting machine
- Japan's OKK large machining center
- Japan's Okamoto CNC grinding center
- Japan's Mitutoyo three coordinate measuring machine.
FAQ
Below FAQ for your reference, if you have any further questions, we are always here for you.
1, Manufacturer or Trading company?
Yes, we are professional machine producer since 1970.During the last 50 years, we devoted our-self to the development and manufacturing of woodworking machinery with passion and innovation. You will be always welcomed to visit our factory.
2, What's your payment term?
30% deposit and 70% balance should be paid before delivery.
3, How about your after-sale service?
Our engineers are available to service overseas to provide professional technical support.
4, Warranty of the wood planing machine?
Its warranty is 12 months.
5, What's your leading time of the thicknesser planer?
Within 10 days for regular stocked machine after receiving deposit.
2 months for OEM machines.
7, What's your delivery term of the skirting moulding planer?
---FOB shanghai/Ningbo
