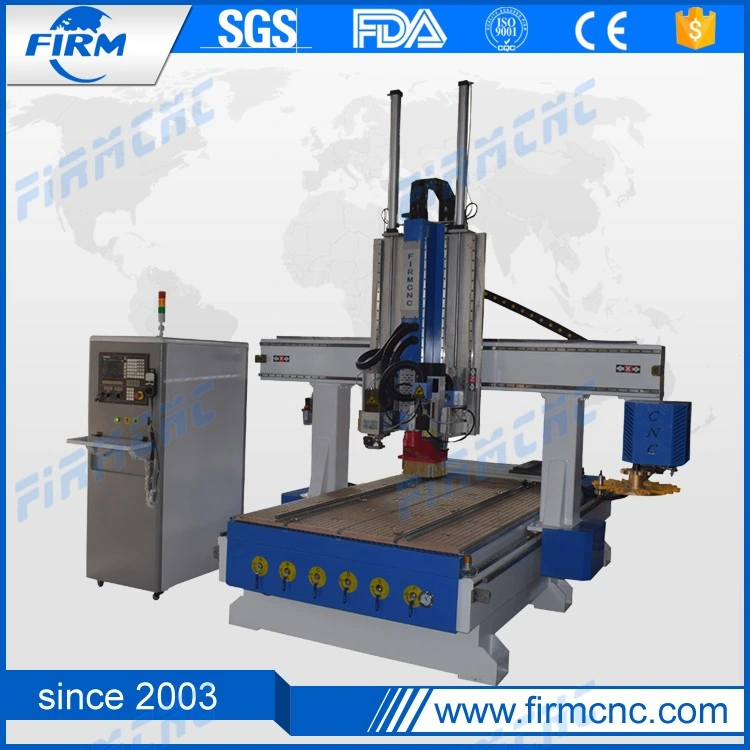

China New Design 1325 10 Tools Atc CNC Wood Router Machine with Drill and Saw

China new design 1325 10 tools ATC cnc wood router machine with drilling head and sawMachine feature#. Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.#. Three axes adopt Taiwan HIWIN linear gu

Featured Products

China new design 1325 10 tools ATC cnc wood router machine with drilling head and saw

Machine feature
#. Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.
#. Three axes adopt Taiwan HIWIN linear guide rail with high precision. Z axis adopts imported Taiwan made ball screw, so high precision and long life time using are assured.
#. Equipped with top quality components for the machine, such as 5 +4 drilling heads, Circular wo tool changer 10 tools, HSD ATC spindle, and the spindle Yaskawa servo motor & Taiwan Delta Inverter, Becker Vacuum pump,Hiwin linear square guide rails, SYNTEC control system and so on, to keep the machine in the best condition even after working for many years.
#. X and Y axis is transmitted by helical rack and pinion. This makes the machine work faster and has larger cutting force compared with ball screw transmission.
#. Well compatibility: CAD/CAM designing software, such as type3/ucancam/artcam, etc.
#. This machine has the function of re-carving after break point or power failure and it can estimate the processing time.
#: Automatic oil-injection system allows the machine maintenance mush easier.
China New Design 1325 10 Tools Atc CNC Wood Router Machine with Drilling Head and Saw

Technical parameters
Description Parameter
X,Y,Z Working Area2500x1300x600mm
X,Y,Z Traveling Positioning Accuracy±0.03/300mm
X,Y,Z Repositioning Accuracy:±0.03mm/300mm
Table SurfaceVacuum and T-slot Combined
FrameHeavy Steel Tube Structure
X, Y StructureRack and Pinion Drive,Hiwin Rail Linear Bearings
Z StructureHiwin Rail Linear Bearings and Ball Screw
Max. Rapid Travel Rate80000mm/min
Max. Working Speed50000mm/min
Spindle Power9.0KW HSD
spindle can 180 degree swing
Spindle Speed0-18000RPM
Drive MotorsYaskawa servo motor
Working VoltageAC380V/50/60Hz,3PH (Option: 220V))
Command LanguageG Code
Operating SystemSyntec Control system
Computer InterfaceUSB / Ethernet
Flash Memory512M
ColletER32
X,Y Resolution<0.03mm
Software CompatibilityType3/UcancameV9 software (Option: Artcam software)
Running Environment Temperature0 - 45 Centigrade
Relative Humidity30% - 75%
Optional PartsSimens Control system
Dust Collector System
Vacuum Pump
Rotary System
Mist-cooling System
Main Parts Configuration
#CE standard
#Italian HSD 9.0KW(12HP) Electrospindle with 10-position Automatic Tool Changer(ISO30)

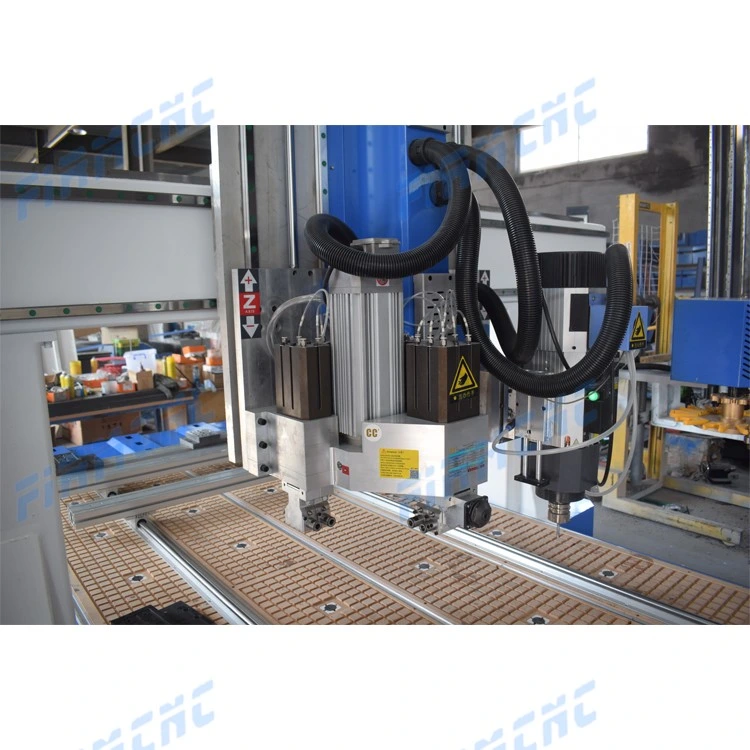

#5+4 Driling heads add saw
#15mm Heavy duty body
#Active safety system
#Helical rack and pinion drivers on X and Y axis, Z axis Taiwan TBI ball screw transmission
#25mm Heavy-duty Hiwin HG Series linear bearing
#Vacuum table with pump
#Taiwan Syntec 6MB
#Japan Yaskawa servo motor and drivers system
#Delta brand VFD-B variable frenquency drive
#10 Position Automatic Tool Changer (options:12,14,16 position)
#Tool Cone Holder-for east bit changing
#Solid State limit switches
#2 Years Warranty

China New Design 1325 10 Tools Atc CNC Wood Router Machine with Drilling Head and Saw
Tool box
China New Design 1325 10 Tools Atc CNC Wood Router Machine with Drilling Head and Saw
Application of 4 axis cnc router
Ideal for panel furniture, solid wood furniture, office furniture, wooden door productions, as well as other non-metal and soft metal applications.

1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

Samples of 4 axis cnc router
China New Design 1325 10 Tools Atc CNC Wood Router Machine with Drilling Head and Saw
China New Design 1325 10 Tools Atc CNC Wood Router Machine with Drilling Head and Saw

Company Information
The machines we are manufacturing and supplying:
cnc router, big watts fiber laser machine,
wood cnc machine, wood lathe,laser engraving
machine, fiber laser marking machine,
plasma cutting machine, oscilating machine,
stone carving machine
And besides good quality machines above, CO2 laser source, CO2 glass laser tube, water chiller, Air pump, fan, lens and mirror, laser cutting head etc.
Thanks to your correspondence reply, we can give you best quotation accordingly,
Thanks in advance

Woodrouter, cnc router, edge banding machine, woodlathe, woodturning lathe, cnc machine, fresatrici wood cnc, cnc router machine, wood cnc router, wood lathes for sale, laser cutting machine, carpentry machines, jinan equipment leather processing, cnc otherpowertools, oscillating tangential knife, drechselbank, cnc engraving machine, cnc router 1325, fiber laser cutting machine, metal mold engraving machine, shandong machinery, wood tools, woodworking tools, plasma cutting machine, punching
China New Design 1325 10 Tools Atc CNC Wood Router Machine with Drilling Head and Saw

China New Design 1325 10 Tools Atc CNC Wood Router Machine with Drilling Head and Saw

Packaging & Shipping
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information

China New Design 1325 10 Tools Atc CNC Wood Router Machine with Drilling Head and Saw

Perfect after Services
Before sale:
We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs,after everything is ready,we would tell you everything goes well here;
After sale:
We would provide English Version working manual.

China New Design 1325 10 Tools Atc CNC Wood Router Machine with Drilling Head and Saw
If you have any questions during using and maintaining,our engineers who could speak very good english would answer you online or by calls.
Machine warranty is two years.So if your machine has any unintentional damages,we would provide parts for free.
If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
China New Design 1325 10 Tools Atc CNC Wood Router Machine with Drilling Head and Saw

FAQ
Q1: How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements,
it would be 15 to 30 days.
Q2: How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Q3: Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
Q4: How about Guarantee & After Sales Service?
1) The machine guarantee is 24 months.
2) 24 hours technical support by phone, email or msn, skype etc.
Q5: If some problems happened to this machine during warranty period,what should i do?
We will supply free parts in machine warranty period if machine have some problem.While we also supply free after-service forever,
so any doubts,just let us know, we will give you solutions in 24 hours.
Q6: What is the MOQ?
MOQ for our products is 1 set machine,we could send it to your country port  if you tell detail information about your country port.
