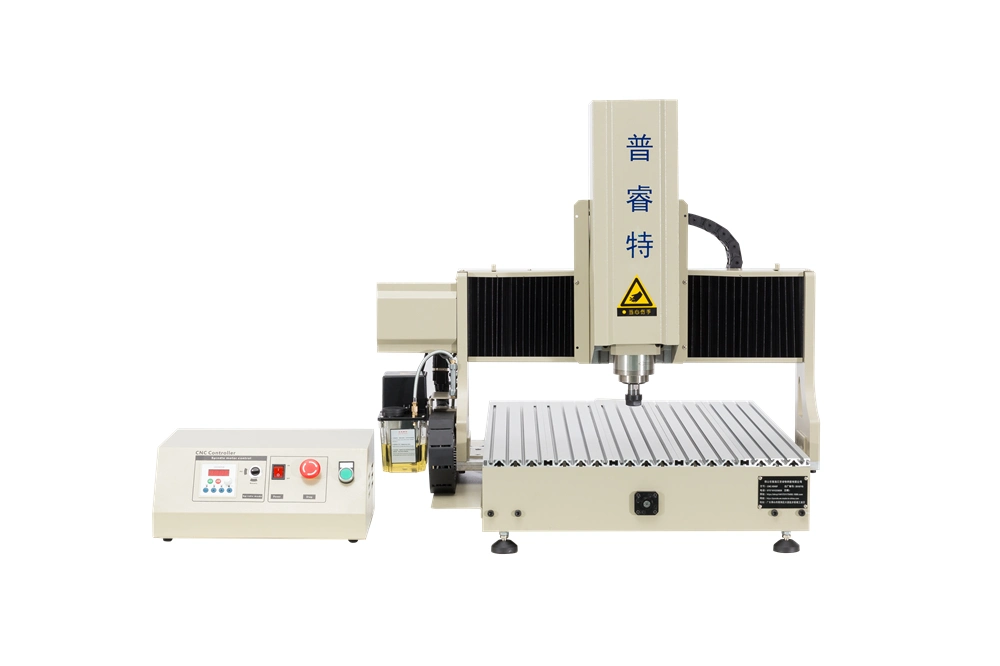

6040 CNC Engraving Router Machine Plastic Woodworking Equipment for DIY Hobby Carving at Home
Information:
Feature:
1. Ball Screw: High efficient
2. Square rail: High repositioning precision, long service life, large load, low-energy
3. Changsheng Spindle:Strong power and low noise
4. Stepping motor: high reliability, high torque at low speeds
5. Water cooling: High cooling efficiency suit for long working time
6. Limit switches : Protect the X,Y,Z axis from touching edges for wrong operation
7. Automatic oil circuit: Simple, labor-saving and fuel-efficient.
7. CE approved
Upgraded optional :
a. Rotating axis: rotating head and Tailstock
b. water sink with water jet pipe
c. 1500W/2200W spindle and 1500/2200W Variable-frequency Drive (VFD)
Applications:
1. Woodworking products processing: MDF, wooden door, screens, art craft wood window fan, solid wood furniture, cabinet products processing, etc.
2. Advertising industry: engraving and cutting on acrylic, foam board, advertising sign, logo sign, advertising decorative products, including 3D cutout letters, dimensional signs, and beautiful print-to-cut designs, LED display screen, etc.
3. Molding industry: engraving on aluminum, copper/brass, plastic, wood material, circuit board, etc.
4. Other industries: The engraver could do shadow-carved, sculpture which widely used in the gift industry; can be used in aluminum cutting industry,such as aluminum, aluminum-plastic plate, aluminum honeycomb panels, aluminum, 3D engraving process, Artificial plate, cutting LED and neon letter , making plastic light box model; also can engrave on acrylic, copper, PVC board, artificial stone, MDF board, and other metal sheet.
Sample show:
Frequently Asked Questions (FAQ):
1. Delivery time
5-7 days delivery time for Standard Machines
15-30 Days for machines that have been customised to client specifications
2. Payment terms
30% deposit payable upon acceptance of quotation
70% balance of invoice due before shipping.
T/T, West Union or Paypal are approved methods of payment.
3. Shipping
Good can be shipped by either of the methods below:
i. FOB or CIF, shipped by our ship partner.
ii. For EX.W, shipped by you or your agents.
4. Machine Operational Instructions
The following options are available to customers:
i. An instructional video demonstrating how to use the machine
ii. A complimentary Free training session hosted at our factory, pending availability.
iii. An Operating Manual ( English) is provided with the machine.
5. Guarantee & After-Sales Service
i. The machine comes with a 12 month guarantee.
ii. . A 24 hour, free technical support service is available via email, fax, MSN, Skype, phone, TradeMessenger.
6. Product Warranty
Replacement parts will be supplied at no cost for the period of the warranty.
Replacement parts are at the customers expense after this expiry of the warranty period. However, we guarantee customer support within 48 hours of being notified of an issue, to
support product maintenance.
7. Minimum Order Quantity (MOQ)
We accept single (1) machine orders
Information:
| Item | Description |
| Model | 6040S3-15 |
| Outside dimension | 1080x870x885mm(LxWxH) |
| Working platform size | 600x850mm(LxW) |
| Frame Material | 6061 Aluminium alloy |
| Max. Feeding height | 150mm(From base of Z axis to platform) |
| X, Y, Z Working Area | 600x400x140mm |
| Sliding unit: | |
| X axi | ø20 High intensity square rail guide |
| Y axis | ø20 High intensity square rail guide |
| Z axis | ø20 High intensity square rail guide |
| Drive unit: | |
| X axis | SFU1605 Ball Screws; |
| Y axis | SFU1605 Ball Screws; |
| Z axis | SFU1204 Ball Screws; |
| Stepping motor | two-phase 3A(86 Model, same as nema34), come with handwheel |
| Driving Power for Stepping motor | AC110-220V, 240W; Output DC 24V, 10A |
| Maximum Idle speed | 1500mm/min |
| Working Speed | 50-1500mm/min(different material with different speed settings) |
| Spindle motor | 1500W high-speed variable frequency spindle motor, ER11 chuck, matching 6mm bur |
| Variable-frequency Drive (VFD) | AC220V, 1500W, 0-400Hz (built-in Control box ) |
| Drive of stepping motor | 0-3.5A adjustable four-axis drive (TB6560AHQ chip, 24V power supply, 2, 4, 8, 16 Subdivision, Factory setting: 8 subdivided |
| Repositioning precision | ≤0.05mm |
| Speed | 0-24000rpm |
| Cooling method | Water cooling, come with water pump |
| Spindle precision | Radial runout≤ 0.03mm |
| Carving command | G code/TAB file/nc/TAB /NCC/file |
| Protection | Emergency stop button |
| Communication interface | Parallel port to computer |
| Input Volts | AC 220V |
| Available Software | Mach3/ EMC2 |
| Software Environment | XP 32 bite or Windows 7 32 bite |
| Gross weight | 75kg |
Feature:
1. Ball Screw: High efficient
2. Square rail: High repositioning precision, long service life, large load, low-energy
3. Changsheng Spindle:Strong power and low noise
4. Stepping motor: high reliability, high torque at low speeds
5. Water cooling: High cooling efficiency suit for long working time
6. Limit switches : Protect the X,Y,Z axis from touching edges for wrong operation
7. Automatic oil circuit: Simple, labor-saving and fuel-efficient.
7. CE approved
Upgraded optional :
a. Rotating axis: rotating head and Tailstock
b. water sink with water jet pipe
c. 1500W/2200W spindle and 1500/2200W Variable-frequency Drive (VFD)
Applications:
1. Woodworking products processing: MDF, wooden door, screens, art craft wood window fan, solid wood furniture, cabinet products processing, etc.
2. Advertising industry: engraving and cutting on acrylic, foam board, advertising sign, logo sign, advertising decorative products, including 3D cutout letters, dimensional signs, and beautiful print-to-cut designs, LED display screen, etc.
3. Molding industry: engraving on aluminum, copper/brass, plastic, wood material, circuit board, etc.
4. Other industries: The engraver could do shadow-carved, sculpture which widely used in the gift industry; can be used in aluminum cutting industry,such as aluminum, aluminum-plastic plate, aluminum honeycomb panels, aluminum, 3D engraving process, Artificial plate, cutting LED and neon letter , making plastic light box model; also can engrave on acrylic, copper, PVC board, artificial stone, MDF board, and other metal sheet.
Sample show:
Frequently Asked Questions (FAQ):
1. Delivery time
5-7 days delivery time for Standard Machines
15-30 Days for machines that have been customised to client specifications
2. Payment terms
30% deposit payable upon acceptance of quotation
70% balance of invoice due before shipping.
T/T, West Union or Paypal are approved methods of payment.
3. Shipping
Good can be shipped by either of the methods below:
i. FOB or CIF, shipped by our ship partner.
ii. For EX.W, shipped by you or your agents.
4. Machine Operational Instructions
The following options are available to customers:
i. An instructional video demonstrating how to use the machine
ii. A complimentary Free training session hosted at our factory, pending availability.
iii. An Operating Manual ( English) is provided with the machine.
5. Guarantee & After-Sales Service
i. The machine comes with a 12 month guarantee.
ii. . A 24 hour, free technical support service is available via email, fax, MSN, Skype, phone, TradeMessenger.
6. Product Warranty
Replacement parts will be supplied at no cost for the period of the warranty.
Replacement parts are at the customers expense after this expiry of the warranty period. However, we guarantee customer support within 48 hours of being notified of an issue, to
support product maintenance.
7. Minimum Order Quantity (MOQ)
We accept single (1) machine orders
